Estuaries contain sources of sustainable “blue” osmotic energy

• In a test, the team created a salt battery array and generated enough electricity to individually power a calculator, LED light and stopwatch.

Waters at Estuaries — where freshwater rivers meet the salty sea — contain different salt concentrations mix and may be sources of sustainable, “blue” osmotic energy, researchers discovered.

Researchers at American Chemical Society created a semipermeable membrane that harvests osmotic energy from salt gradients and converts it to electricity.

The new design had an output power density more than two times higher than commercial membranes in lab demonstrations.

Ye, Qin and their team members say their findings expand the range of ecological materials that could be used to make RED membranes and improve osmotic energy-harvesting performance, making these systems more feasible for real-world use.

Room for improvement

Osmotic energy can be generated anywhere salt gradients are found, but the available technologies to capture this renewable energy have room for improvement.

One method uses an array of reverse electrodialysis (Red in the picture) membranes that act as a sort of “salt battery,” generating electricity from pressure differences caused by the salt gradient.

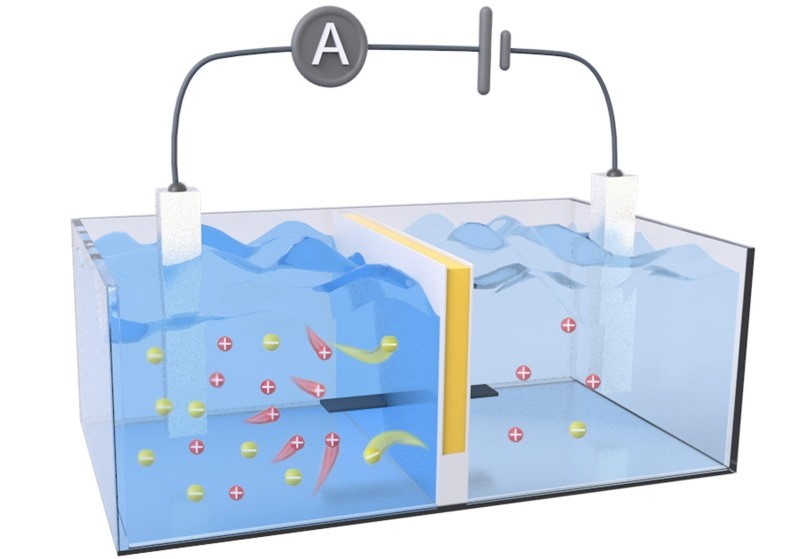

An improved membrane (yellow line) dramatically increased the amount of osmotic power harvested from salt gradients, like those found in estuaries where salt water (left tank) meets fresh water (right tank).

To even out that gradient, positively charged ions from seawater, such as sodium, flow through the system to the freshwater, increasing the pressure on the membrane.

To further increase its harvesting power, the membrane also needs to keep a low internal electrical resistance by allowing electrons to easily flow in the opposite direction of the ions.

Higher ion conductivity

Previous research suggests that improving both the flow of ions across the red membrane and the efficiency of electron transport would likely increase the amount of electricity captured from osmotic energy.

So, Dongdong Ye, Xingzhen Qin and colleagues designed a semipermeable membrane from environmentally friendly materials that would theoretically minimise internal resistance and maximise output power.

The researchers’ red membrane prototype contained separate (i.e., decoupled) channels for ion transport and electron transport.

They created this by sandwiching a negatively charged cellulose hydrogel (for ion transport) between layers of an organic, electrically conductive polymer called polyaniline (for electron transport).

Initial tests confirmed their theory that decoupled transport channels resulted in higher ion conductivity and lower resistivity compared to homogenous membranes made from the same materials.

In a water tank that simulated an estuary environment, their prototype achieved an output power density 2.34 times higher than a commercial red membrane and maintained performance during 16 days of non-stop operation, demonstrating its long-term, stable performance underwater.

In a final test, the team created a salt battery array from 20 of their red membranes and generated enough electricity to individually power a calculator, LED light and stopwatch.
